Ansul R-102 6-Gallon Dual-Hood System Installation in Newbury Park, CA

Location

Newbury Park, Thousand Oaks

Completed

May 2026

Facility type

Restaurant / commercial kitchen

Systems

Ansul R-102 (two 3-gallon ANSULEX tanks, 6 gallons total) · Doubler expellant cartridge

Codes

NFPA 17A · NFPA 96 · Local fire code

Authority having jurisdiction

Ventura County Fire Department

The kitchen has two existing exhaust hoods. Both had to be protected by one system, with enough expellant pressure to discharge through both nozzle networks at the same time.

1. 1

   Survey and pre-engineered plans

   An on-site mechanical survey, then drawings using the Ansul R-102 design parameters: appliance coverage, flow numbers, branch lines, actuation tubing and shut-off interlocks.

2. 2

   Plan check

   Plans submitted to the Fire Department plan check and managed through to stamped approval before installation.

3. 3

   Tanks and cartridge

   Two 3-gallon ANSULEX tanks, 6 gallons of agent in total, with a doubler cartridge instead of a single-tank cartridge so both hoods discharge at once.

4. 4

   Piping and nozzles

   Supply piping and discharge nozzles over every cooking appliance, plenum and duct in both hoods.

5. 5

   Balloon witness test

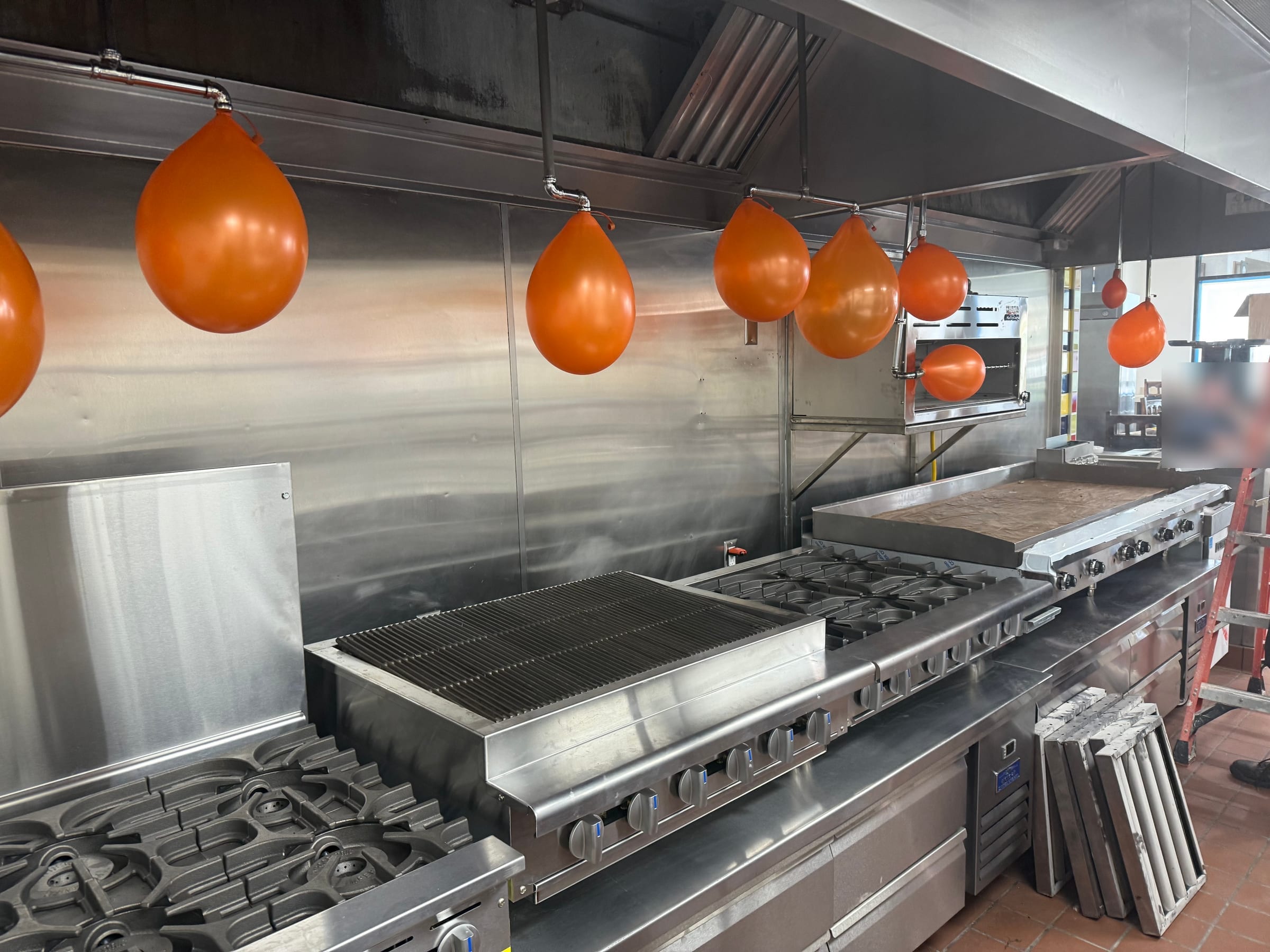

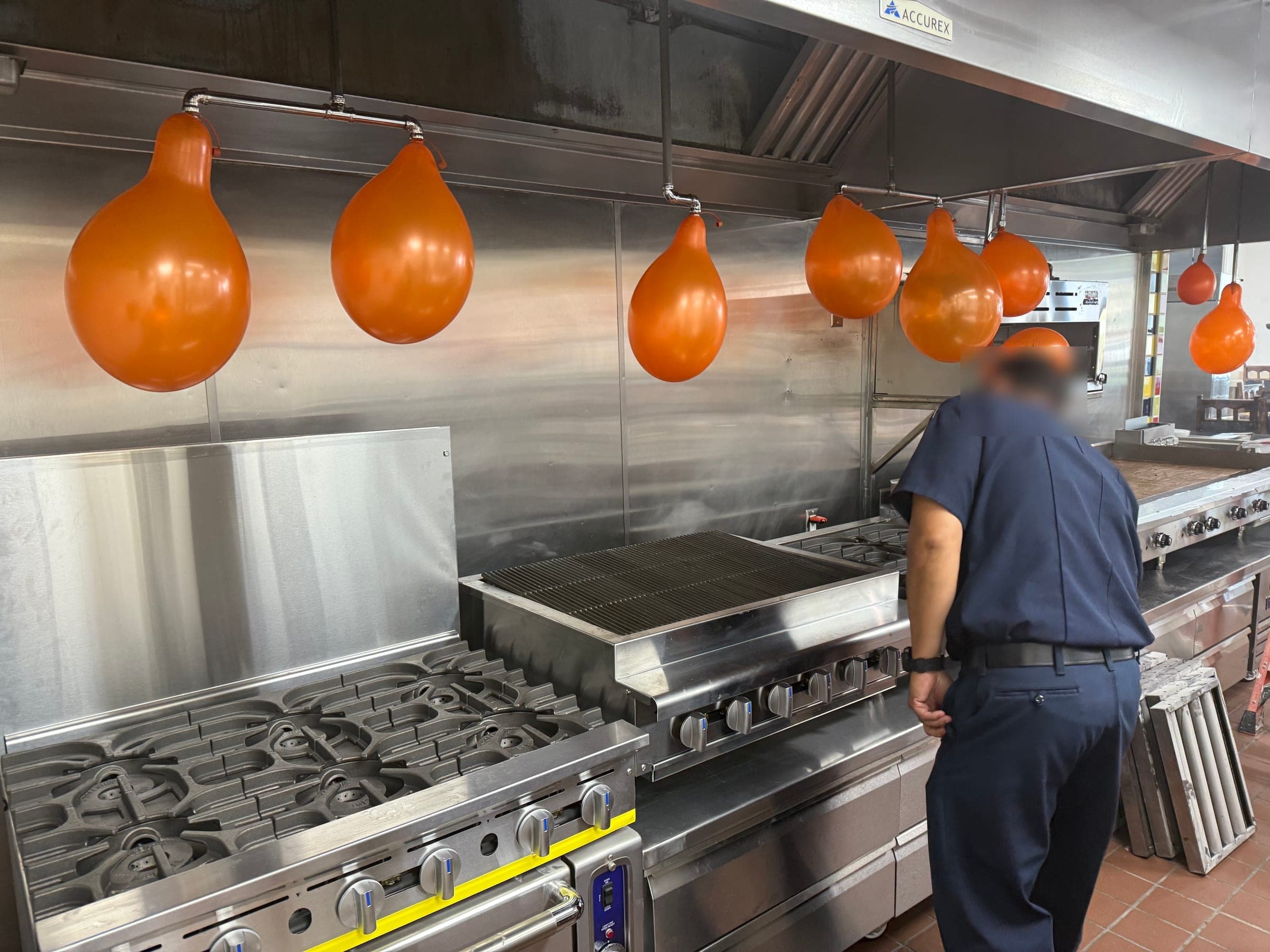

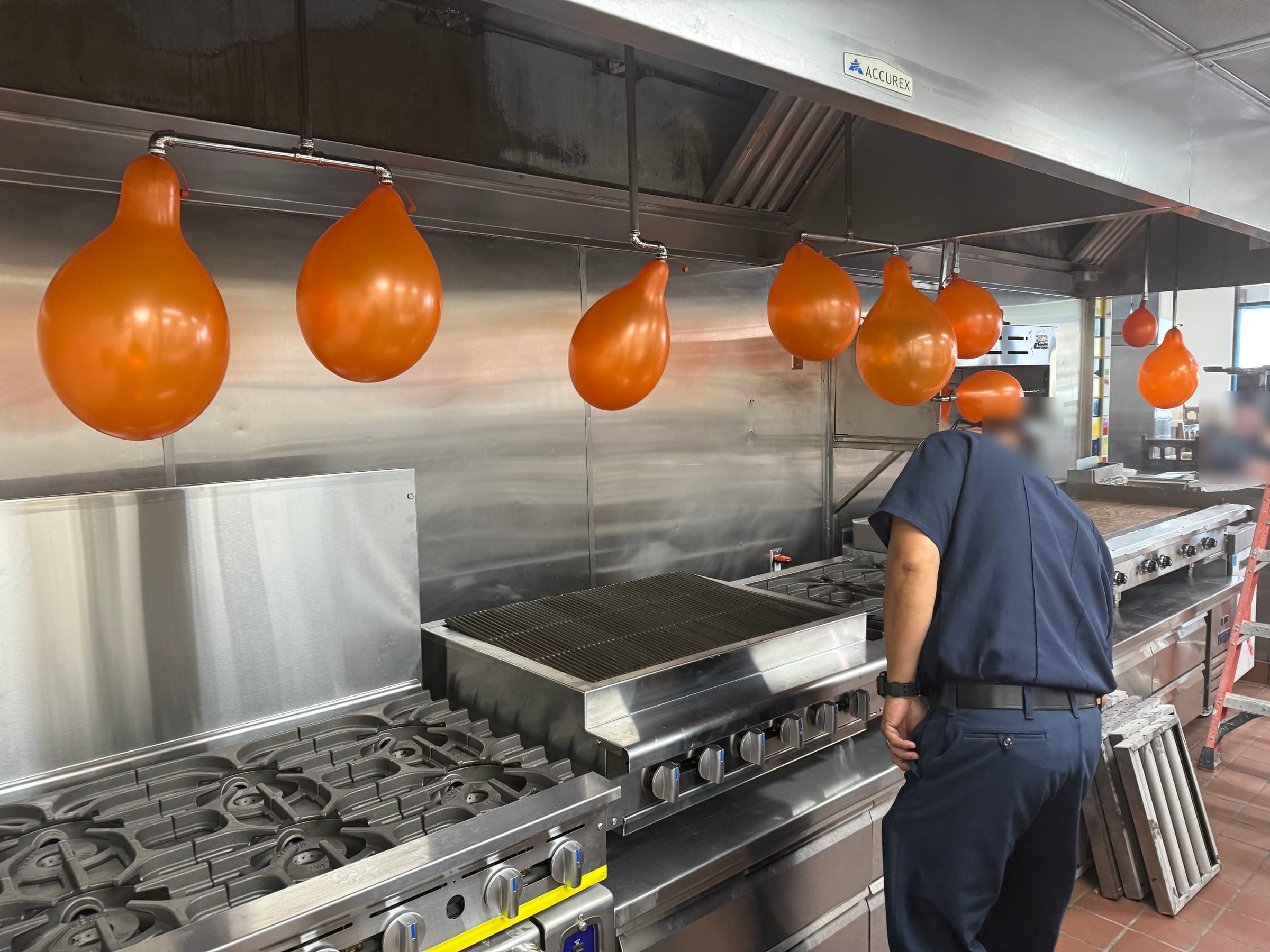

   Test balloons on every nozzle tip, then a manual trip with the fire inspector present. Every balloon inflated, showing an open flow path in both hoods, and the gas shut-off valve and the power interlocks to the kitchen equipment were confirmed.

• Passed on the first attempt

  The Fire Department witness test passed with zero correction items.

• Two hoods, one system

  Both hoods protected by a single 6-gallon Ansul R-102 system.

• One contractor throughout

  Plans, plan check, installation and testing.
